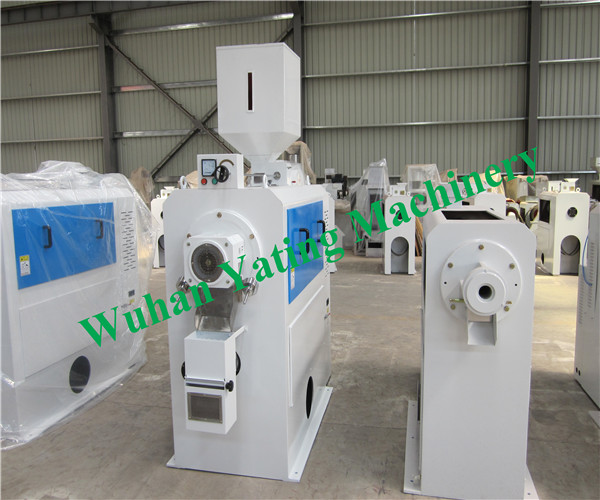

5.5-7.5ton per hour Emery Roll Rice Milling Machine for Parboiled
Rice
Feature:
It has many advantages, such as large output, low temperature rise,
good chaff removal, less broken, low energy consumption, simple
operation, large shaft diameter and strong jet air, doubling the
air intake, etc.
Detailed Structure:
1. Feed control subassembly: it consists of control box, feed
hopper, feed hopper seat, flow control valve, male tab gear drive
and other parts.
2. Whitening chamber subassembly: it consists of master emery
roller, briar dressing emery roller, spindle, spiral head, feed end
bearing seat, discharge end bearing seat, rice huller screen, rice
huller screen layering and other parts.
3. Rack: it mainly consists of rack, upper air regulating plate,
side door, bran collecting hopper and protective cover etc.
4. Clean cooling device: it consists of air casing, suction bran
tubes, pressure gate.
5. Air blower subassembly: it consists of air blower bracket, air
blower shell, impeller and air blower motor etc..
6. Motor subassembly: it consists of main motor (selected by the
customer), motor frame, motor support and so on.
| Item | Unit | YTPN6500(Hot Sale and New) |
| Capacity | Kg/h | 5500-7500 |
| Power | KW | 37/45(4grade) |
| Main Axial Speed | r/min | 800-880 |
| Emery Roller | mm | Φ298x960 |
| Spiral Propeller | mm | Φ316x208(dia*length) |
| Radial Trapped Gas | mm | 11 |
| Axial Feed End Trapped Gas | mm | 2 |
| Axial Discharge End Trapped | mm | 13.5±2 |
| Weight | kg | 1000 |
| Air volume | m3/h | 2500-3500 |
| Static pressure(water column) | mm | 150-250 |
| Overall | mm | 2427x847x2301 |
| Note: The above technical data can be changed without notice. |
